CIRCLE LED BASE S

Lighting the future, preserving the past

Description

Building on the proven success of the CIRCLE LED BASE retrofit solutions, CIRCLE LED BASE S is a next-generation LED retrofit kit meticulously optimised to ensure greater integration into existing luminaires.
Thanks to its compact design, enhanced ingress protection and versatile installation system, CIRCLE LED BASE S seamlessly fits into a variety of luminaire types — including compact and slim-profile designs — without compromising their original aesthetic. This complete retrofit solution extends the life of your heritage luminaires, preserving the charm of your historic landscapes while delivering enhanced energy efficiency, sustainability and long-term performance.
Embrace a brighter, greener future with our retrofit solutions, ensuring your heritage luminaires continue to shine without waste or costly replacements.

Complete retrofit kit

CIRCLE LED BASE S components are all included – electrical, driver, LEDs, optics and optional surge protection – for seamless upgrading. The IP66-rated version can be used to modernise and reinforce heritage luminaires that were not previously waterproof.

Flexible configurations

CIRCLE LED BASE S is available in two sizes with various light distributions and LED colours, to meet the needs of various lighting retrofit projects.

Like a brand-new luminaire

CIRCLE LED BASE S has been engineered with the latest LED lighting innovations, offering extended lifespan, glare control, light pollution reduction and enhanced safety for your road and urban environments. With the CIRCLE LED BASE S, you receive the same level of excellence as you would with a brand new Schréder luminaire.

Quick ROI

Maximise energy savings and achieve a rapid return on investment with CIRCLE LED BASE S. Easy to retrofit and designed for a long life, it eliminates the need for periodic lamp replacement and requires no special maintenance.

Circular economy in action

Quality design is in Schréder's DNA, ensuring that our luminaires last for decades. However, technological advances can render them obsolete despite their structural integrity. Enter modern Schréder technology, offering superior lighting with minimal maintenance and improved energy performance. CIRCLE LED BASE S transforms durable HID luminaires into efficient LED luminaires, extending their life by replacing only the power supply and light source. Enjoy improved lighting quality, reduced maintenance and increased energy savings while retaining the original luminaire.

Characteristics

General Information

Recommanded installation height (m)

4.0 -

15.0

Conformidad

CE mark

ENEC certified

RCM mark

UKCA marking

Technical future proof

Easy replacement of the photometric engine and electronic assembly

Electrical information

Clase eléctrica

Class I EU

Class II EU

Tensión nominal

220-240V – 50-60Hz

Protocolo de control

1-10V

DALI

Opciones de control

Custom dimming profile

AmpDim

Bi-power

Performance

Luminaire output flux (lmm)

700 -

12400

Power consumption (W)

10.0 -

85.0

Eficiencia de la luminaria - a (lm/W)

172

Optical information

Temperatura de color de los LED

Warm White 727

Warm White 730

Neutral White 740

Índice de reproducción cromática (CRI)

Housing and finish

Cuerpo

Aluminium

Óptica

Polycarbonate

Protector

Polycarbonate (with integrated lenses)

Grado de hermeticidad

IP 66

Resistencia a los impactos

IK 08

Lifetime

Todas las configuraciones

100,000h - L90

Lifetime may be different according to the size/configurations. Please consult us.

Dimension and mounting

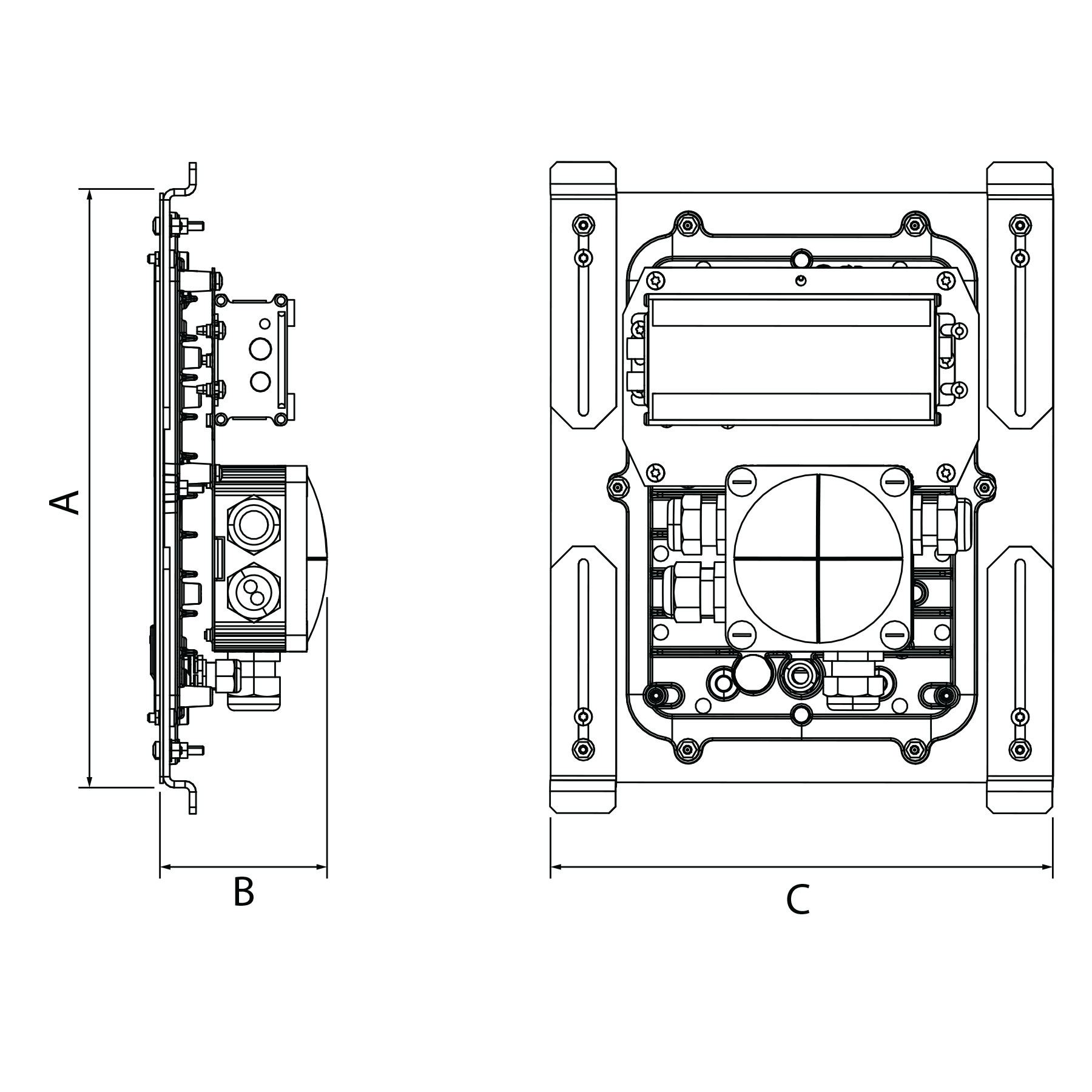

Dimensions and mounting

AxBxC (mm | inch)

CIRCLE LED BASE S 1 : 224x82x230 | 8.8x3.2x9.1

CIRCLE LED BASE S 2 : 274x82x230 | 10.8x3.2x9.1

Peso (kg | lbs)

CIRCLE LED BASE S 1 : 2.0-2.1 | 4.4-4.6

CIRCLE LED BASE S 2 : 2.2-2.9 | 4.8-6.4

Posibilidades de montaje

Retrofit kit

The dimensions are given for the CIRCLE LED BASE S IP66-rated version. For more information about dimensions and weights, please refer to the installation instructions.

Download all specs

Control systems

Control link

All Control Options

Installation and Maintenance

Easy installation with CIRCLE LED BASE S

The IP66 rated CIRCLE LED BASE S kit comes pre-wired for easy installation. Connect to the mains using cable glands or quick connectors. This plug-and-play solution ensures hassle-free upgrading, while the universal adaptation plate guarantees easy integration into various luminaire types.
