LED lighting in a continuous line for safer tunnels


The CONTILED tunnel lighting solution is designed to replace luminaires fitted with fluorescent lamps for continuous line lighting in tunnels and underpasses.
It provides the required lighting levels with significant energy and maintenance savings.
CONTILED improves the visual experience and boosts tunnel safety for motorists, being fully compliant to the most stringent standards.
With robust and recyclable components, this LED tunnel luminaire offers a high level of protection against corrosion, impact and vibrations, guaranteeing long lasting performance.

Total solution for safer tunnels

Accidents and critical incidents are a serious risk in tunnels. CONTILED offers a better visibility, which enables the motorists to be proactive by noticing dangers in due, time and take the necessary actions to avoid them.
As part of the total solution, we can also provide emergency lighting, road marking and fixtures for service tunnels and railways that can complete your tunnel requirements.

Photometric performance and flexibility

The CONTILED tunnel luminaire is equipped with photometric engines composed of modular quantities of LEDs so that they can offer a wide range of lumen packages.
This flexibility ensures that the light distributions are specifically adapted to the real needs of the tunnel to be lit.

Withstands harsh tunnel environments

Thanks to its robust anodised extruded aluminium profile and glass protector, CONTILED is highly resistant to shocks and corrosion within harsh tunnel environments.

Ready for a circular economy

CONTILED has been designed to fulfil the FutureProof concept, which is crucial for a circular economy.
The photometric engine has a high tightness level to protect the LEDs and lenses from coming into contact with the harsh environment of the tunnel and so maintains photometric performance over time. This design enables any version of the luminaire to be easily upgraded to take advantage of potential developments.


General Information

Recommanded installation height (m)
3.0 -

Electrical information

Protocolo de control
Opciones de control
Sistemas de control asociados


Luminaire output flux (lm)
1000 -
Power consumption (W)
8.0 -
Eficiencia de la luminaria - a (lm/W)

Optical information

Temperatura de color de los LED
Índice de reproducción cromática (CRI)

Housing and finish

Tempered glass
Grado de hermeticidad
Resistencia a los impactos


Todas las configuraciones

Operating conditions

Rango de temperatura de funcionamiento (Ta)
-30°C up to +45°C / -22°F up to 113°F
Depending on the luminaire configuration. For more details, please contact us.

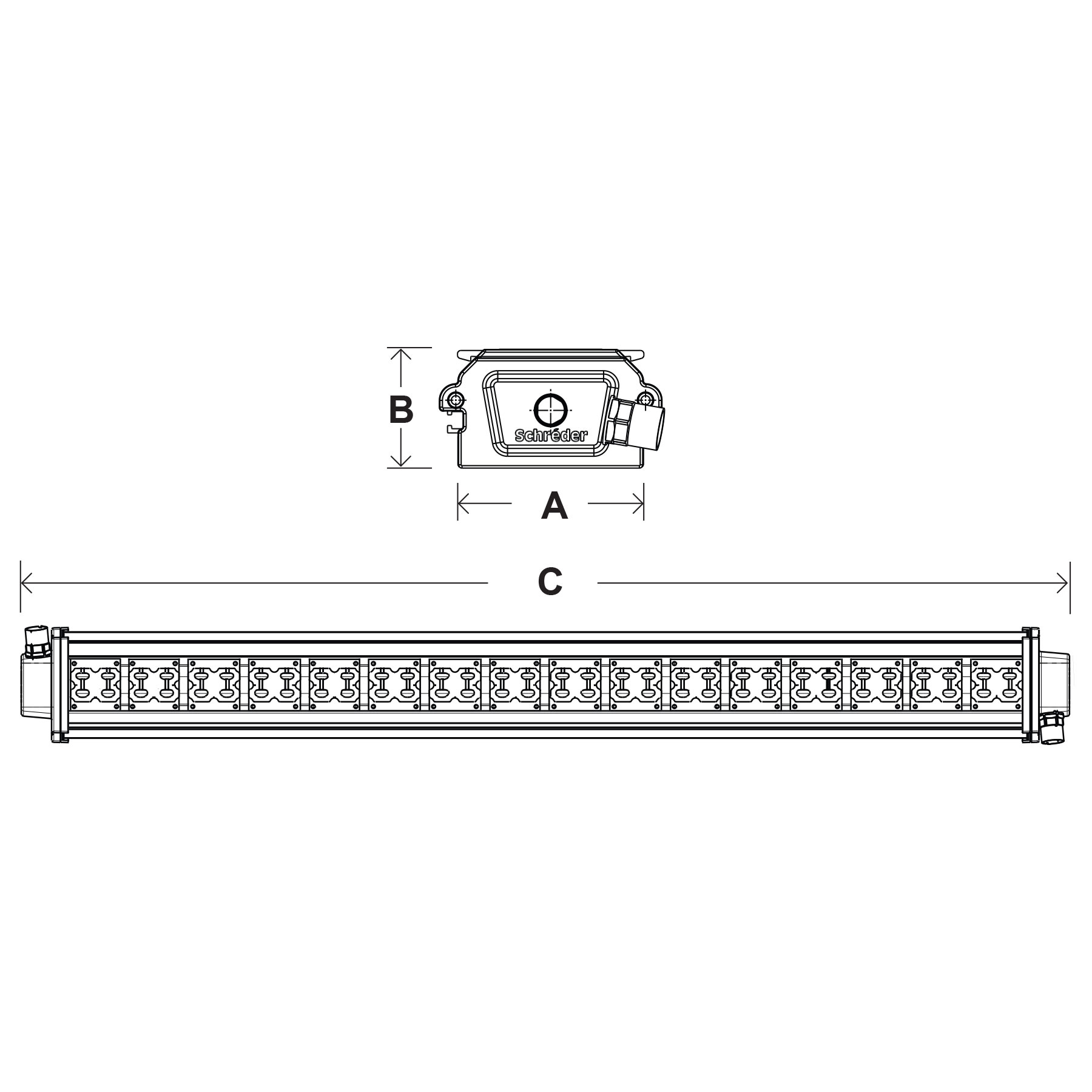

Dimensions and mounting

AxBxC (mm | inch)
CONTILED 1 - 124x67x602 | 4.9x2.6x23.7
CONTILED 2 - 124x67x1202 | 4.9x2.6x47.3
Peso (kg | lbs)
CONTILED 1 - 7.0 | 15.4
CONTILED 2 - 14.0 | 30.8
Posibilidades de montaje
Surface mounting

Installation and Maintenance

Two mounting possibilities

The CONTILED tunnel lighting solution can be mounted in two ways. The connection can be done either via clips at the top of the luminaire or via the grooves on the side.

Accessories and versions

Options for CONTILED

As an option, CONTILED can be supplied with the following components:
• External power supply - driver box
• Assembly kit for luminaire lateral clamping
• QPD connectors (including a shunt)
