TWIXX

Minimalist but elegant design for urban lighting

Description

Sometimes, less is more! With its minimalist round design, TWIXX provides an elegant solution for lighting various environments in towns and cities such as urban and residential streets, squares and parks, pedestrian areas and car parks. This modern, cost-effective LED luminaire is an efficient alternative to fixtures equipped with conventional light sources. TWIXX is a strategic asset for cities, municipalities and owners of outdoor areas looking for a lighting platform to generate high energy savings with a fast return on investment.

Multiple configurations

Available for post-stop and side-entry mounting, TWIXX offers various configurations including an elegant double-arm which perfectly integrates parks, squares and residential streets.

Fast return on investment

TWIXX is a strategic asset for cities, municipalities and owners of outdoor areas looking for a lighting platform to generate high energy savings with a fast return on investment.

Symmetrical/asymmetrical light distributions

Available with symmetrical and asymmetrical light distributions and four typical lumen packages, TWIXX provides a highly efficient yet affordable outdoor lighting solution.

Dark sky compliant

When used in post-top or side-entry (tilted at 0°) configurations, TWIXX is dark sky compliant, generating zero up-light (0% ULOR).

Get your starlit sky back

The International Dark-Sky Association (IDA) is the recognised authority on light pollution. It provides tools, ressources, and a certification program for industries and companies willing to reduce light pollution. At Schréder, we are convinced that a more responsible lighting has the potential to preserve the environment. We are fully committed to reducing light pollution by joining the IDA’s certification program. Our approved range of luminaires complies with the IDA’s program of approval to deliver a light that protects the environment in all respects. Get your starlit sky back with the TWIXX lighting solution.

Characteristics

General Information

Recommanded installation height (m)

3.0 -

8.0

Conformidad

CE mark

ENEC certified

DarkSky Approved

Meets IDA Dark Sky requirements when equipped with a fixed mounting option.

Electrical information

Clase eléctrica

Class I EU

Class II EU

Tensión nominal

220-240V – 50-60Hz

Opciones de protección contra sobretensiones (kV)

Protocolo de control

DALI

Socket optión(es)

NEMA 7-pin (optional)

Sistemas de control asociados

Schréder EXEDRA

Performance

Luminaire output flux (lmm)

4200 -

11300

Power consumption (W)

30.0 -

80.0

Eficiencia de la luminaria - a (lm/W)

152

Optical information

Temperatura de color de los LED

Warm White 730

Neutral White 740

Índice de reproducción cromática (CRI)

Porcentaje de flujo luminoso al hemisferio superior (ULOR)

Meets IDA Dark Sky requirements when fitted with LEDs of 3000K or less.

ULOR may be different according to the configuration. Please consult us.

Housing and finish

Cuerpo

Aluminium

Óptica

Polycarbonate

Protector

Tempered glass

Grado de hermeticidad

IP 66

Resistencia a los impactos

IK 08

Lifetime

Todas las configuraciones

100,000h - L76

Operating conditions

Rango de temperatura de funcionamiento (Ta)

-30°C up to +55°C / -22° F up to 131°F

Depending on the luminaire configuration. For more details, please contact us.

Dimension and mounting

Dimensions and mounting

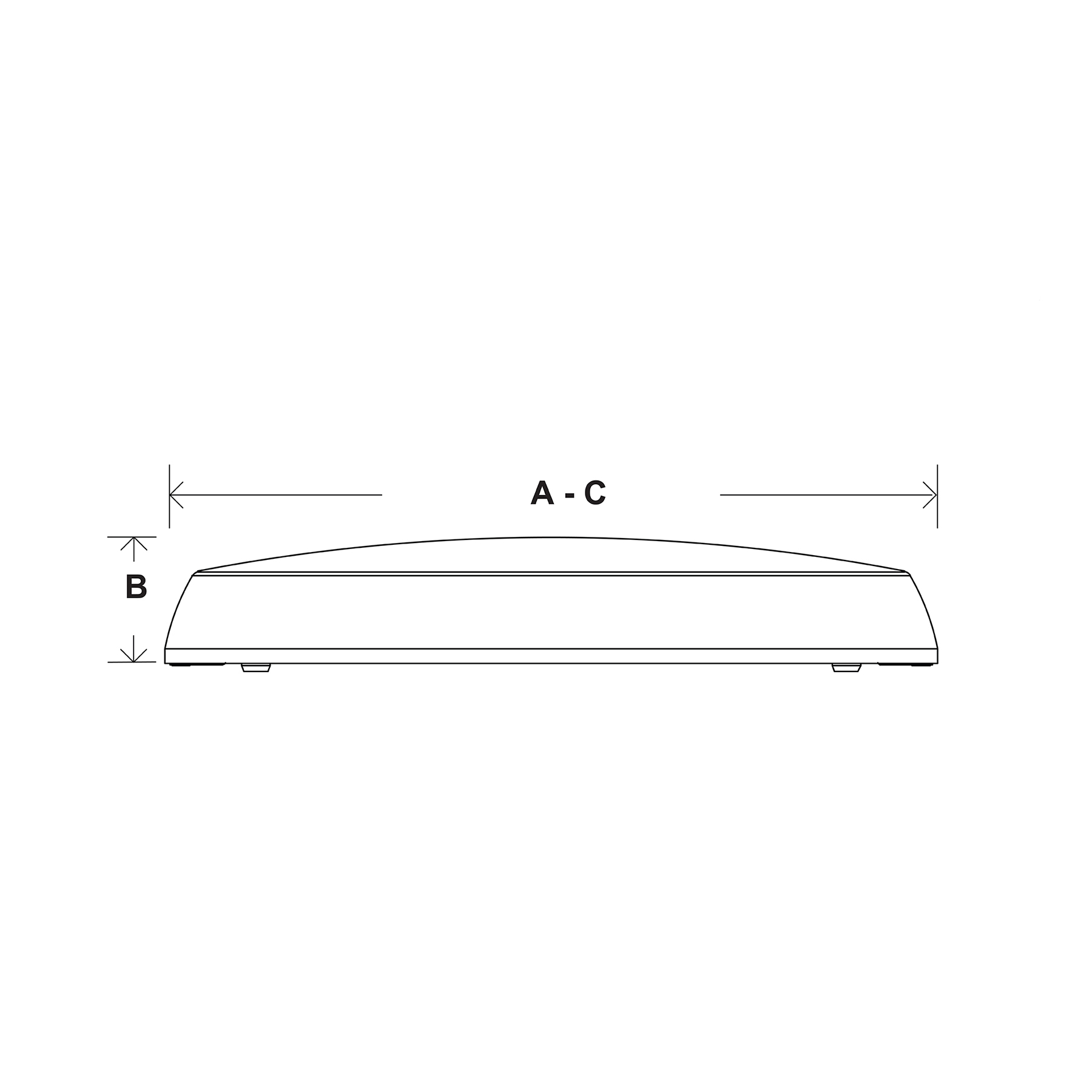

AxBxC (mm | inch)

TWIXX 1 : 490x84x490 | 19.3x3.3x19.3

TWIXX 2 : 490x84x490 | 19.3x3.3x19.3

TWIXX 3 : 490x84x490 | 19.3x3.3x19.3

TWIXX 4 : 490x84x490 | 19.3x3.3x19.3

Peso (kg | lbs)

TWIXX 1 : 7.9 | 17.4

TWIXX 2 : 7.9 | 17.4

TWIXX 3 : 7.9 | 17.4

TWIXX 4 : 7.9 | 17.4

Posibilidades de montaje

Side-entry slip-over – Ø60mm

Post-top slip-over – Ø60mm

Download all specs

Control systems

Control options for TWIXX

TWIXX is available with drivers including a built-in standard DALI interface for smooth dimming.

Control link

All Control Options

Installation and Maintenance

Versatile mounting

TWIXX is adapted to all typical urban spaces, from narrow streets to squares thanks to its versatile mounting. This elegant luminaire is designed for post-top or side-entry mounting on a Ø60mm spigot. In addition to a double-arm post-top configuration, a knuckle fixation, suitable for post-top or side-entry, is available. It includes a wide tilting range (180°) to adapt the inclination angle to any configuration.
